Oxygen cabinet generator solutions
Designed for various oxygen applications with low-capacity requirements. With ease of installation, footprint, and
transportation in mind, our cabinet solutions are perfect for aquaculture broodstock and hatchery,
and ozone applications.
Cabinet CAB-C O.03 and O0.6
CAB-C models come with an integrated air package and oxygen tank, ensuring a seamless and efficient oxygen supply.
Key features
CAB-C O.03 Capacity: 0.3 Nm3/h (5 NI/min)@ 93%
CAB-C O.06 Capacity: 0.6 Nm3/h (10 NI/min)@ 93%
- Energy consumption starting from 0.92 and 1.37 kW
- Integrated oil-free quality compressor
- Integrated dryer
- Mounted ruggedized cabinet
- Easy installation
- Long life and low maintenance
- CE Marked
| Model | Weight (kg) | Dimensions LxWxH(mm) |
|---|---|---|
| O.03 | 80 | 615x630x860 |
| O.06 | 110 | 615x630x860 |
Find out more by calling us at +45 4879 7811. You can also send us an e-mail to sales@oxymat.com or request a quote:

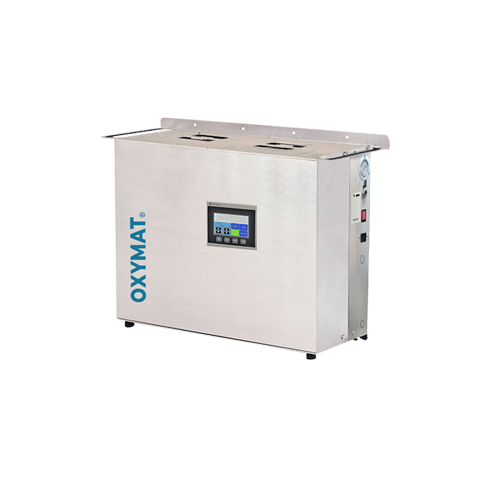

Cabinet CAB O.03
An easy installation cabinet solution that can be mounted either on the wall or floor. The 4-inch display offers effortless control and performance monitoring.
Key features
Capacity: 0.3 Nm3/h (5 NI/min)@ 93%
- Energy consumption from 0.023 kW
- High quality low volume oxygen
PSA generator - Mounted in ruggedized
stainless cabinet - Easy installation – plug-and-play
- Wall or floor mounting
- CE Marked
- Optional integrated oxygen sensor
- Long life and low maintenance
| Model | Weight (kg) | Dimensions LxWxH(mm) |
|---|---|---|
| O.03 | 50 | 650x275x550 |
Find out more by calling us at +45 4879 7811. You can also send us an e-mail to sales@oxymat.com or request a quote:
Cabinet CAB O.06
Key features
Capacity: 0.6 Nm3/h (10 NI/min)@ 93%
- Energy consumption from 0.023 kW
- High quality low volume oxygen
PSA generator - Mounted in ruggedized
stainless cabinet - Easy installation – plug-and-play
- Wall or floor mounting
- Long life and and low maintenance
- Optional integrated oxygen sensor
| Model | Weight (kg) | Dimensions LxWxH(mm) |
|---|---|---|
| O.06 | 75 | 650x275x800 |
Find out more by calling us at +45 4879 7811. You can also send us an e-mail to sales@oxymat.com or request a quote:
Cabinet CAB O1.2
Key features
Capacity: 1.2 Nm3/h (20 NI/min)@ 93%
- Energy consumption from 0.023 kW
- High quality low volume oxygen
PSA generator - Mounted in ruggedized
stainless cabinet - Easy installation – plug-and-play
- Wall or floor mounting
- Long life and and low maintenance
- Optional integrated oxygen sensor
| Model | Weight (kg) | Dimensions LxWxH(mm) |
|---|---|---|
| O1.2 | 115 | 650x275x1600 |
Find out more by calling us at +45 4879 7811. You can also send us an e-mail to sales@oxymat.com or request a quote:
Expect state-of-the-art products from OXYMAT
In recent years we have invested heavily in a cutting-edge production facility and focused on smart design of our nitrogen equipment. This approach enabled us to significantly cut down on variable costs. OXYMAT modular nitrogen equipment is of premium quality, and we have simplified our production process, lowered our storage costs and unified sourcing to get better prices. The result is highly competitive prices for you as our customer compared to those of other oxygen plant manufacturers.
