Nordic Nitrogen generator solutions
Our PSA generators are engineered and manufactured to deliver consistent on-site nitrogen production. Weather your are within marine, food and beverages, oil and gas, or any other industriy, our flexible solutions are specifically tailored to fulfill all the necessary requirements
N200 Nordic
N200 model is well suited for marine, oil and gas, food and beverages, and other industries that require large amount of nitrogen generation. Its compact design is the generator of choice for many marine vessels.
Key features
Capacity: 133 to 405 Nm3/h @ 99,5% purity
- Energy consumption from 0.19 kW/Nm3
- All pipes and valves are made of
stainless steel (SS 316L) - Sandblasted and powder coated
- LED visual operation status
- Modbus RTU communication
| Model | Weight (kg) | Dimensions LxWxH(mm) |
|---|---|---|
| O200-2 | 1595 | 1973x934x2237 |
| O200-3 | 2240 | 2449x934x2237 |
| O200-4 | 2820 | 2922x934x2237 |
| O200-5 | 3460 | 3396x934x2237 |
LED visual status
Online monitoring
Sand bleasted and powder coated
Modbus RTU communication
Stainless steel (SS316L)
Find out more by calling us at +45 4879 7811. You can also send us an e-mail to sales@oxymat.com or request a quote:
Pallet N60 Nordic
The N60 models offer a reliable and cost-effective solution for various applications that require a continuous supply of Nitrogen. They provide easy installation, mobility, as well as physical space optimization. They are well-suited for the food and beverages, oil and gas industry, and in power plants for purging or corrosion protection.
Key features
Capacity: 21 to 90 Nm3/h @ 99,5% purity
- Energy consumption from 0.19 kW/Nm3
- All pipes and valves are made of
stainless steel (SS 316L) - Sandblasted and powder coated
- LED visual operation status
- Modbus RTU communication
- Plug and play (built-in filters)
- Easy transportation (euro-pallet size)
| Model | Weight (kg) | Dimensions LxWxH (mm) |
|---|---|---|
| O60-2 | 1100 | 790x1190x2206 |
| O60-3 | 1175 | 790x1190x2206 |
Stainless steel SS 316L
LED operation status
Built-in filters
Modbus RTU communiaction
Euro-pallet dimensions
Sandblasted and powder coated
Online monitoring
Find out more by calling us at +45 4879 7811. You can also send us an e-mail to sales@oxymat.com or request a quote:

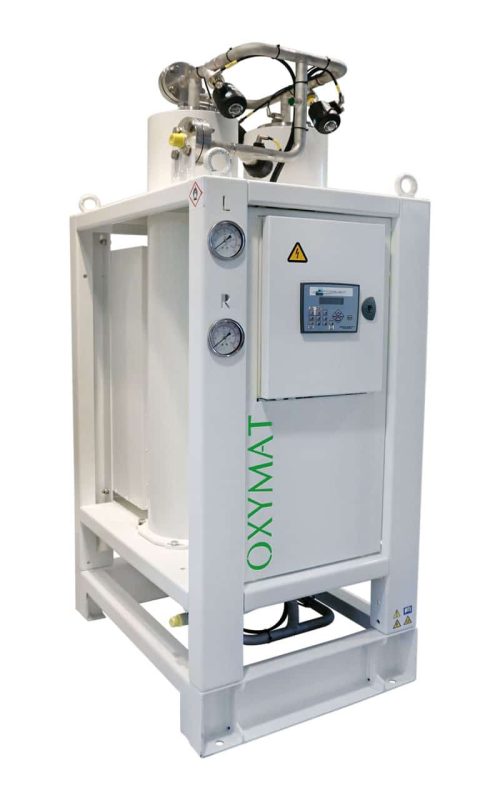

Half pallet Nordic
The half-pallet model, is lightweight and easy to transport, making it suitable for various applications. It provides a reliable and cost-effective solution for nitrogen generation, offering space optimization. It is well-suited for nitrogen generation in industries such as manufacturing, food and beverages, and electronics.
Key features
Capacity: 7 to 30 Nm3/h @ 95,5% purity
- Energy consumption from 0.19 kW/Nm3
- All pipes and valves are made of
stainless steel (SS 316L) - Sandblasted and powder coated
- LED visual operation status
- Modbus RTU communication
- Easy transportation (1/2 euro-pallet size)
| Model | Weight (kg) | Dimensions LxWxH(mm) |
|---|---|---|
| Half pallet-1 (20L) | 290 | 790x590x1350 |
| Half pallet-2 (40L) | 330 | 790x590x1641 |
| Half pallet-3 (60L) | 370 | 790x590x2197 |
LED visual status
Modbus RTU communication
Stainless steel (SS 316L)
1/2 Euro-pallet size
Sandblasted and powder coated
Find out more by calling us at +45 4879 7811. You can also send us an e-mail to sales@oxymat.com or request a quote:
Nitrogen special installations
We specialize in delivering efficient and dependable nitrogen gas generation solutions tailored to meet the needs of diverse industries. The design of our generators provides several advantages for industries and sectors that need adaptable integration and easy deployment in different environments.
expect state-of-the-art products from oxymat
expect state-of-the-art products from oxymat
In recent years we have invested heavily in a cutting-edge production facility and focused on smart design of our nitrogen equipment. This approach enabled us to significantly cut down on variable costs. OXYMAT modular nitrogen equipment is of premium quality and we have simplified our production process, lowered our storage costs and unified sourcing to get better prices. The result is highly competitive prices for you as our customer compared to those of other oxygen plant manufacturers.
In recent years we have invested heavily in a cutting-edge production facility and focused on smart design of our nitrogen equipment. This approach enabled us to significantly cut down on variable costs. OXYMAT modular nitrogen equipment is of premium quality and we have simplified our production process, lowered our storage costs and unified sourcing to get better prices. The result is highly competitive prices for you as our customer compared to those of other oxygen plant manufacturers.
Oxymat modular psa
n generators
Oxymat modular psa
n generators
benefits compared to previous models
benefits compared to previous models
- Superior quality of materials
- Significantly reduced energy consumption
- Better lead times
- Extended lifetime of N generator
- Superior quality of materials
- Significantly reduced energy consumption
- Better lead times
- Extended lifetime of N generator
how did we achieve this
- Simplification – parts consumption down to 1/5 of previous process
- Automation – our welding and bending robots are ultra-modern
- Modularisation – all capacities have two standard size PSA pressure vessels
- Simplification – parts consumption down to 1/5 of previous process
- Automation – our welding and bending robots are ultra-modern
- Modularisation – all capacities have two standard size PSA pressure vessels
Service and maintenance
With a lower power consumption, you can settle for a smaller compressor. This means that not only will you see a significant drop in energy costs; the operational costs of your compressor are also reduced. In addition, stainless-steel valves are more durable than brass valves.
With a lower power consumption, you can settle for a smaller compressor. This means that not only will you see a significant drop in energy costs; the operational costs of your compressor are also reduced. In addition, stainless-steel valves are more durable than brass valves.
Nitrogen generator pressure vessels
Designed for dynamic load
All OXYMAT oxygen equipment including pressure vessels is manufactured and surface treated in-house. Welding is done on our German welding robot and we have our own facilities for surface treatment with sandblasting, powder coating, and curing. Vessels are approved for PED or ASME. If 100% NDT is required, we even have our own X-RAY testing facilities.
we provide
state-of-the-art design oxymat modular psa nitrogen generators
we provide
state-of-the-art design oxymat modular psa nitrogen generators
By investing heavily in an ultra-modern production facility and rethinking our design, we have managed to eliminate a large portion of our variable costs. Our modular units are made in superior quality, and costs are kept down due to simplified production, lower storage costs and unified sourcing. This means competitive pricing for you when comparing OXYMAT to other nitrogen plant manufacturers.
By investing heavily in an ultra-modern production facility and rethinking our design, we have managed to eliminate a large portion of our variable costs. Our modular units are made in superior quality, and costs are kept down due to simplified production, lower storage costs and unified sourcing. This means competitive pricing for you when comparing OXYMAT to other nitrogen plant manufacturers.
oxymat x-series frame-mounted solutions
oxymat x-series frame-mounted solutions
If you are looking for a large capacity nitrogen generation package, and footprint is critical, our frame-mounted N2 generators are quite simply best value for money. The system is plug-and-play and the design is well-proven with well over one hundred installations aroud the globe.
If you are looking for a large capacity nitrogen generation package, and footprint is critical, our frame-mounted N2 generators are quite simply best value for money. The system is plug-and-play and the design is well-proven with well over one hundred installations aroud the globe.
applications overview
Click below to find out which N generator applications OXYMAT covers
Click below to find out which N generator applications OXYMAT covers
